Local display of up to 8 sensor values, indication of critical status and network connectivity for remote monitoring via the internet through SNMP, Modus TCP/IP, Modbus RS485 (optional) and MQTT
4x Intelligent Sensor Ports, 1x Dry Contact I/O with LCD Display
The sensorProbe2+ LCD (SP2+LCD) is based on our popular SP2+ device. Equipped with 4 sensor ports and a dry contact I/O it is ideal for server rooms and monitoring of individual racks. Connect any AKCP intelligent sensor such as thermal maps, sensor status light, contactless current meters and water leak detection. Mounted on the front, or with a 45° bracket on the top of your rack, the LCD vides a visual display of all sensor status and values. An optional external cellular data modem can be connected to the dedicated UART modem port.
The SP2+LCD comes with optional PoE, 5VDC Locking DC Jack connection or both for dual power with redundancy. External DC 12-24 and 40-60 VDC power supplies are also available.

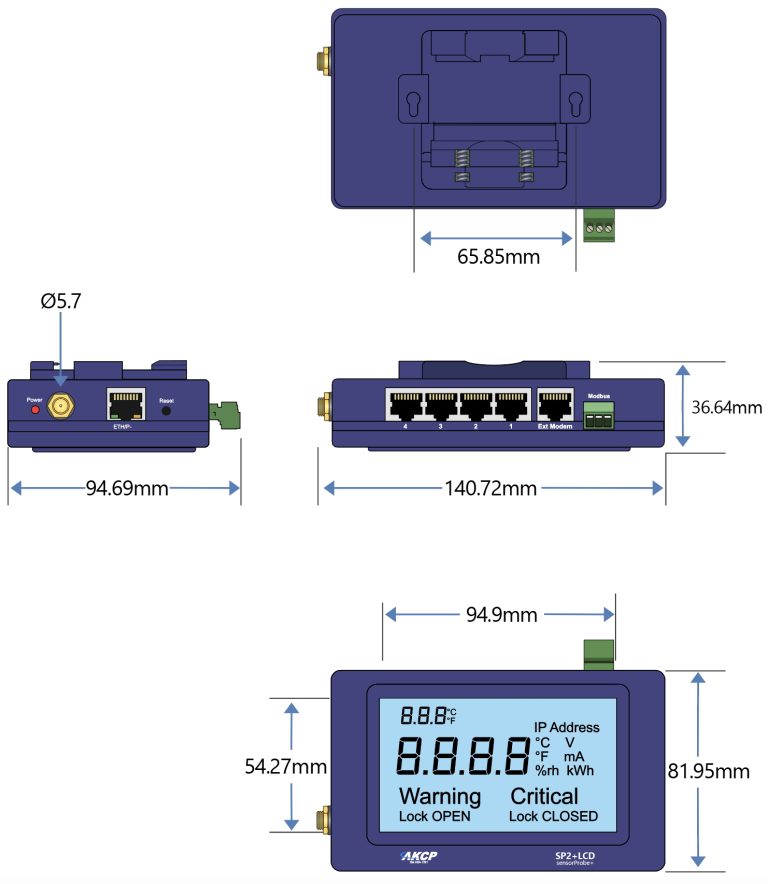

| Dimension | Size 135 x 81 x 36 mm Weight 0.4 Kg |
| Network Interface | Standard 10/100 Mbps Full Duplex Ethernet RJ-45 Port |
| Mounting | 0U rack-mountable Built in DIN Rail Clip and cable tie loops Screw hole mounting |
| Power Requirements | PoE IEEE 802.3af support External 5.5V 3A Power Adapter Input Voltage and Current ratings : 100V~240V – 0.22A |
| Status Indication | LCD display for sensor values, status and IP address LED indication for Power LED for network connectivity LED for sensor online and threshold status |
| RJ-45 | 4 x RJ-45 Sensor Ports for connecting AKCP Autosense Sensors Up to 20 Dry Contact Input (5VDC) using 5DCS input for each sensor port 1x built in Dry Contact I/O |
| Componenets | Manufactured using highly integrated, low power surface mount technology to ensure long term reliability. |
| Operating Environment | Temperature : Min. 0° C – Max. 70° C Humidity: Min. 20% – Max. 80% (Non-Condensing) |
| MTBF | 1,400,000 Hours based on field experience with sensorProbe units. |
| Inputs | 4x RJ-45 Sensor Ports 1x 10/100 Ethernet Port 1x UART external modem port |
| Outputs | Configurable output signals (0VDC/5VDC) on any of the 4 RJ-45 sensor ports |
| Max Sensors | Maximum of 400 onlined sensors, including virtual sensors. |
| Maximum Number of Access Control Users | 500 Users (Pro License required) |
| Supported Protocols | SNMPv1, SNMPv2c, SNMPv3 Modbus TCP, Modbus RS485 MQTT, MQTTS Rsyslog RADIUS TACACS HTTP, HTTPS IPV6 NTP VPN Encrypted E-mail (SSL/TLS, STARTTLS) |
| Pro License Features | Pro licensing: SP2+LCD-PRO-L: Unlock the following features: Maps, 3rd Party Modbus, IPv6, SNMPv3, VPN, Access Control User, Heartbeats, Modbus, Remote UI Access Virtual Sensor pack: VS Virtual sensor (pack of 5 sensors). Maximum of 80 virtual sensors. Every SP2+LCD comes with 5 free virtual sensors5 Dry Contacts: DCS 5 dry contact input sensors (per port) 1 Licenses equal to 1x RJ45 unlockedRadius: RAD User authentication through RADIUS server TACACS+: TAC |
