Simple, yet power sensor monitoring device with built in Temperature sensor, or optional Temperature and Humidity sensor. An additional sensor port and dry contact I/O or optional MODBUS, CANBUS or LINBUS connection.
Monitor Environmental, Power and Security for a single IT Cabinet
The sensorProbe1+ (SP1+) is a compact device. Equipped with a dry contact I/O, an intelligent sensor port, and a built-in temperature sensor on 5ft cable. An optional dual temperature and humidity sensor can is available. It runs the same user interface as the rest of the sensorProbe+ product line, with all the same features such as MQTT, IPV6, SNMPV3, Radius, TACACS, Modbus TCP/IP, and up to 80 virtual sensors (Additional licenses may apply)
Connect the sensor splitter box with cabinet thermal maps and contactless current meter, and you have a complete monitoring solution for your rack. Monitor temperature front and rear, top middle, and bottom. Check your ∆T, humidity, and current consumption. Utilize the dry contact for door contacts, and virtual sensors to monitor third party devices installed in the rack.
Available with a variety of power options such as PoE, 5VDC, 12-24 and 40-60VDC inputs, including redundant dual power inputs.
The dry contact I/O can be changed by pre order to MODBUS RS485, CANBUS or LINBUS for integration with third party devices, or monitoring systems

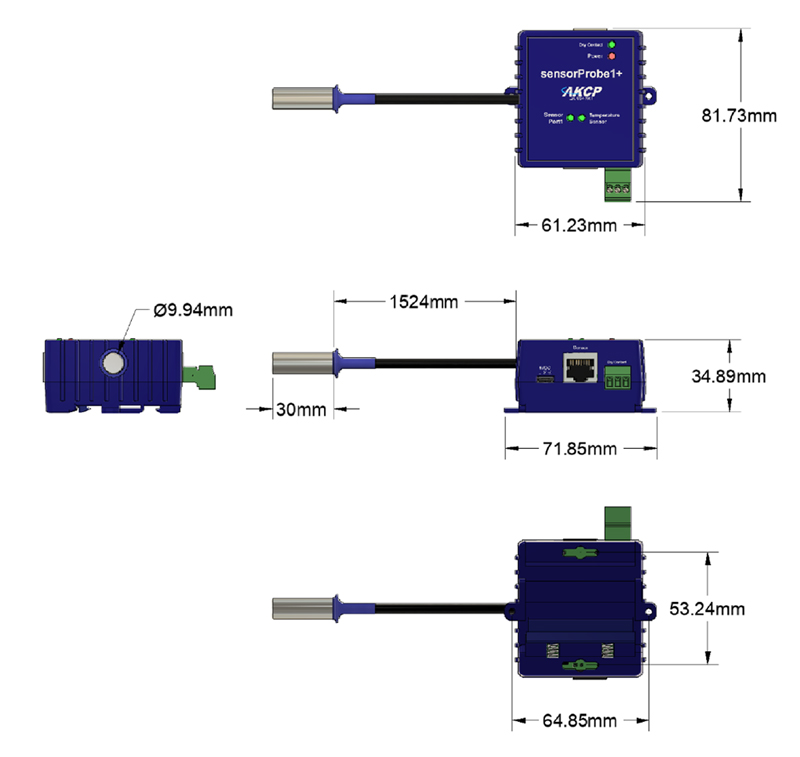

| Dimension | Size 82 x 72 x 35 mm Weight 0.2 Kg |
| Network Interface | Standard 10/100 Mbps Full Duplex Ethernet RJ-45 Port |
| Mounting | Screw mounting Built-in DIN Rail Clip and cable tie loops |
| Power Requirements | PoE IEEE 802.3af support Optional external 5.5V 3A Power Adapter Input Voltage and Current ratings : 100V~240V – 0.22A Optional external 12-24 or 40-60 VDC dual inputs |
| Status Indication | LED indication for Power LED for network connectivity LED for sensor online and threshold status LED for dry contact input status |
| RJ-45 | 1 RJ-45 Sensor Port for connecting AKCP Autosense Sensors |
| Components | Manufactured using highly integrated, low-power surface mount technology to ensure long-term reliability. |
| Operating Environment | Temperature : Min. 0°C – Max. 70°C (Industrial Option available for Min. -25°C – Max. 70°C) Humidity: Min. 20% – Max. 80% (Non-Condensing) |
| MTBF | 1,400,000 Hours based on field experience with sensorProbe units. |
| Inputs | 1x RJ45 Sensor Port 1x Dry Contact I/O (0/5VDC), Optional MODBUS RS485, LINBUS or CANBUS 1x 10/100 Ethernet Port 1x hard-wired 5ft temperature sensor / hard-wired 5ft dual temperature and humidity sensor 5x free virtual sensors (additional unlocked via license) |
| Outputs | Configurable output signals (0VDC/5VDC) on RJ-45 sensor port |
| Max Sensors | Maximum of 400 online sensors, including virtual sensors. |
| Maximum Number of Access Control Users | 500 Users (Pro license required) |
| Supported Protocols | SNMPv1, SNMPv2c, SNMPv3 Modbus TCP, Modbus RS485 MQTT, MQTTS Rsyslog RADIUS TACACS HTTP, HTTPS IPV6 NTP VPN Encrypted E-mail (SSL/TLS, STARTTLS) |
| Licensing | Pro licensing: SP1+PRO-L: Unlock the following features: Maps, 3rd Party Modbus, IPv6, SNMPv3, VPN, Access Control User, Heartbeats, Modbus, Remote UI Access Virtual Sensor pack: VS Virtual sensor (pack of 5 sensors). Maximum of 80 virtual sensors. Every SP1+ comes with 5 free virtual sensors5 Dry Contact: DCS 5 dry contact input sensors (per port) 1 License equal 1x RJ45 port unlockedRadius: RAD User authentication through RADIUS serverTACACS: TAC User authentication through TACACS+ server |
